ROBOTIC STACK PALLETIZER

NūSYS 401

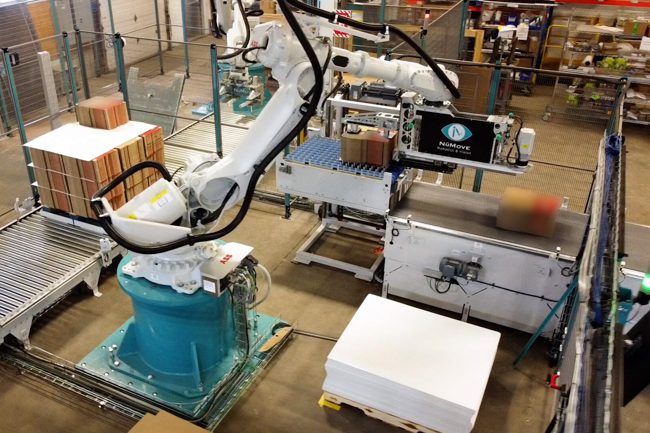

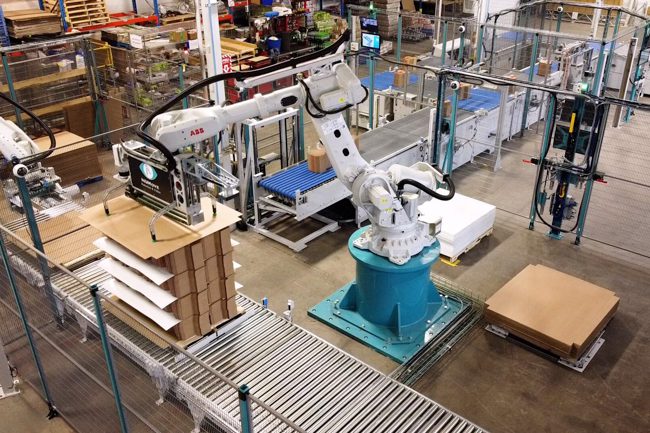

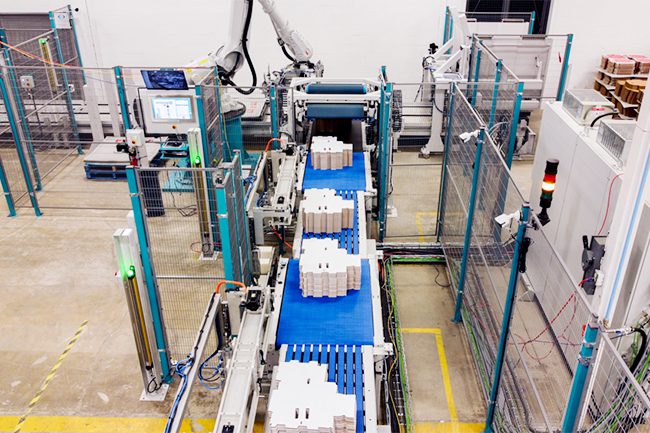

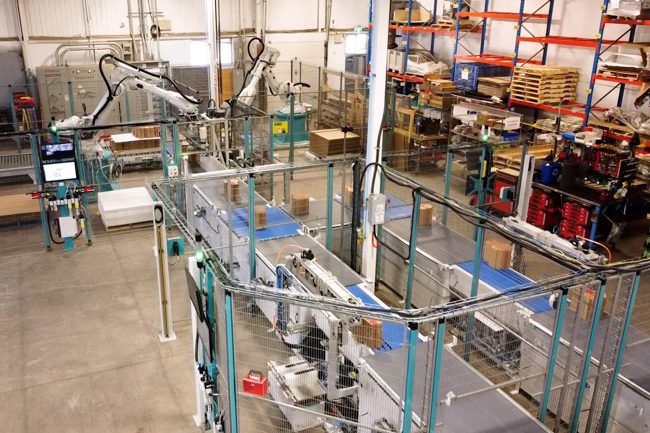

Our Robotic Stack Palletizer is a complete automation solution that conveys and squares carton stacks discharged from a press / die cutter and palletizes them with a robot. This stack palletizing system is very flexible and customizable. The operator can easily adjust the equipment to handle multiple sizes and geometries of cartons.

robotic stack palletizer

Features

Folding Carton Dimensions

    • From 5×10 to 26×42 inches.

    Handling of Carton Stacks

    • Up to 16 inches high.
    • Up to 140 lbs.
    • Orientation of stacks print side down or up as required.
    • Squaring of stacks before being palletized.

    Would like to see our full videos of this robotic application?

    robotic stack palletizer
    robotic stack palletizer
    robotic stack palletizer
    robotic stack palletizer

    NūMove’s integrated equipment of the solution


    NūLOGIK

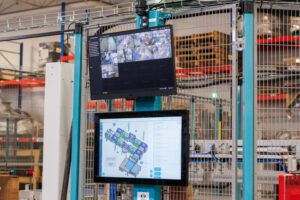

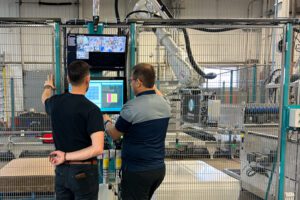

    NūMove is proud to have developed its own operator interface (Human-Machine Interface, or simply HMI). Why did we bother, you may ask? Well, NūLogik is designed by our software development specialists so it can be adapted to robot cells and easily integrated to our vision systems. In addition to its user-friendly characteristics, we can assure you NūLogik is customizable according to your needs.

    nulogik hmi
    • Developed specifically for industrial automated equipment with Industry 4.0 functionalities in mind.
    • Production statistics improve operator efficiency and provide decision makers valuable information.
    • Display of alarms for each equipment: fast process to identify and clear the alarms.
    • Handles and supports multiple vision system cameras, no additional PC required.
    • Components’ disassembly and assembly drawings & instructions directly available from the interface.
    • Remote support integrated through a secure encrypted router.
    nulogik

    ROBOT TOOL

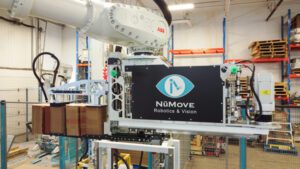

    Stack Palletizing Tool

    NūTOOL 401

    robotic stacking tool

    Stack Palletizing Tool

    NūTOOL 401


    PRODUCT HANDLING

    robotic stack palletizer equipment

    Product Belt Conveyor

    NūPRO 301

    robotic stack palletizer equipment

    Product Turntable

    NūPRO 302

    robotic stack palletizer equipment

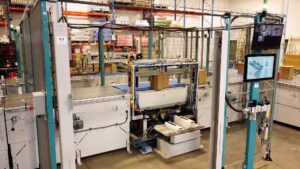

    Squaring Device

    NūPRO 401

    robotic stack palletizer equipment

    Product Flipping Conveyor

    NūPRO 404

    robotic stack palletizer equipment

    Product Air Table

    NūPRO 405

    robotic stack palletizer equipment

    Product Diverting Conveyor

    NūPRO 406

    robotic stack palletizer equipment

    Product Pick Conveyor

    NūPRO 701


    PALLET HANDLING

    automation equipment

    Pallet Stacker-Destacker

    NūPAL 101

    automation stacking solution

    Pallet Chain Conveyor

    NūPAL 201

    automation folding carton

    Pallet Shuttle

    NūPAL 301

    folding carton automation equipment

    90° Pallet Transfer Conveyor

    NūPAL 302

    Would like to discuss your needs with our team?
